    10045884 Conmet Axle Oil Seal for Dongfeng Truck and Volvo Truck 133.36x187.5x24

    Ask Lasest Price
    Brand Name : TBT or Customized
    Model Number : 133.36x187.5x24
    Certification : IATF 16949: 2016 , ISO 9001:2008
    Price : US Dollars $0.15-$4.02
    Payment Terms : T/T
    Supply Ability : 10000 pcs /day
    Delivery Time : 10-30 days
    MOQ : 20 PCS
    • Product Details
    • Company Profile

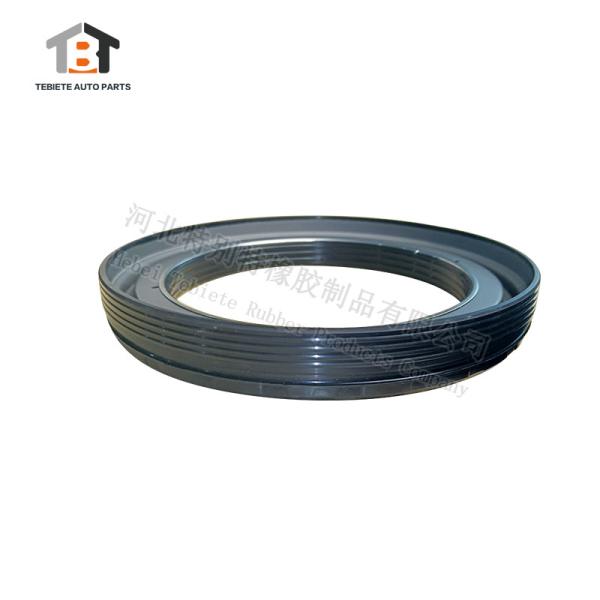

    10045884 Conmet Axle Oil Seal for Dongfeng Truck and Volvo Truck 133.36x187.5x24

    Product Name:

    10045884 Conmet Axle Oil Seal for Dongfeng Truck and Volvo Truck 133.36x187.5x24


    Material:inner NBR, outer HNBR


    Truck Oil Seal Data:


    Item nameTruck Oil Seal
    Truck ModelVolvo Truck and Dongfeng Truck
    OE No10045884
    Size133.36*187.5*24
    TemperatureNBR(-40~120°C),FFKM(-20~320°C)
    fkm(-20~3 00°C),Silicone (-70~220°C)
    EPDM(-50~150°C),PU(-40~90°C)
    Hardness40~90 Shore A
    ColorsBlack or according to customer
    MOQ20pcs or according to size
    CertificationIATF16949:2016
    SGS Quality Testing
    UsesGood oil resistance, wear resistance, and corrosion resistance.
    PaymentPaypal or T/T or L/C or Western union
    Sample lead time5 -10days usually
    Delivery time15 Working Days
    Packageplastic bag&carton box or according to your requirements
    Advantageex-factory prices with high quality
    ShippingSmall quantity: UPS/FeDex/DHL express
    Large quantity: by Air/Sea

    Truck Oil Seal Type:

    TypeCode NoFeatureUse
    Common single lipBIt is generally used for sealing medium such as mineral oil and water with high and low speed rotating shaft and reciprocating motion.Ordinary oil seal, used in the case of less dust and impurities, resistance to medium pressure < 0.05Mpa occasions, the highest line speed of 15m/s, reciprocating speed <0.1m/s.
    Normal double lips

    FB


    In addition to the use characteristics of the S type oil seal, it can also be dustproof.

    Common oil seal, with dustproof lip can be dustproof, resistance to medium pressure <0.05


    In the case of MPA, the linear velocity is less than 15m/s.

    No spring typeBVSpring-less single lip type inner-wrapped skeleton rubber oil seal.Generally suitable for low speed working conditions, the sealing medium is lubricating ester. Linear velocity is less than or equal to 6m/s.
    Outer skeleton unillippedWSingle lip with spring outer skeleton type rubber oil seal, thin waist, good followability, good rigidity.Ordinary oil seal, used in the case of less dust and impurities, resistance to medium pressure <0.05MPa occasions. Rotating shaft linear velocity ≤15m/s.
    Exoskeleton bilabialFWThe double lip shell type rubber oil seal with a pair of lips, thin waist, good followability, high stiffness and good coaxiality.

    Common oil seal, with dustproof lip can be dustproof, resistance to medium pressure <0.05


    MPA occasions. The speed of 15 m/s or less.

    7/5000

    Assembled single lip

    ZThe outer frame oil seal is made by the inner and outer frame assembly and piping, and has the characteristics of high installation accuracy, fast heat dissipation and heavy load.Applicable to high temperature, high speed conditions under heavy load conditions, medium pressure ≤ 0.05Mpa, the highest line speed ≤15m/s.
    Assembled double lipFZThe assembled outer frame oil seal with auxiliary lip has the characteristics of dustproof, high installation precision, fast heat dissipation and heavy load.Suitable for high temperature, high speed, heavy load conditions under dust conditions, medium pressure ≤ 0.05Mpa, the highest line speed ≤15m/s.
    Unidirectional reflux type

    Right-handed SR,


    Left-handed DL

    The oblique bars with an Angle are measured in the air of the lip. Using the principle of fluid mechanics, the one-way pumping action is produced and the backflow effect is obtained.It is related to the direction of rotation of the shaft. Because of the reflux effect, the radial force is smaller than the ordinary oil seal, which reduces the wear and heat generation and improves the service life. It is suitable for the occasion of medium pressure < 0.05Mpa and the speed is less than or equal to 20m/s.
    Compression typeNYLips short, waist short and thick, with pressure resistance, working pressure ≤ 3Mpa.Suitable for medium pressure ≤ 3Mpa occasions, suitable for high pressure pump shaft end oil seal, under normal circumstances PV value ≤8. Rotating shaft linear speed ≤15m/s.
    FAQ:
    Q1: Wonder if you accept small orders?
    A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.

    Q2: Can you send products to my country?
    A2: Sure, we can. If you do not have your own ship forwarder, we can help you.

    Q3: Can you do OEM for me?
    A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.

    Q4: What's your payment terms ?
    A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.

    Q5: How about your delivery time?
    A5: Generally, it will take 10 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

    Q6: When can I get the quotation ?
    A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
