Product Name:

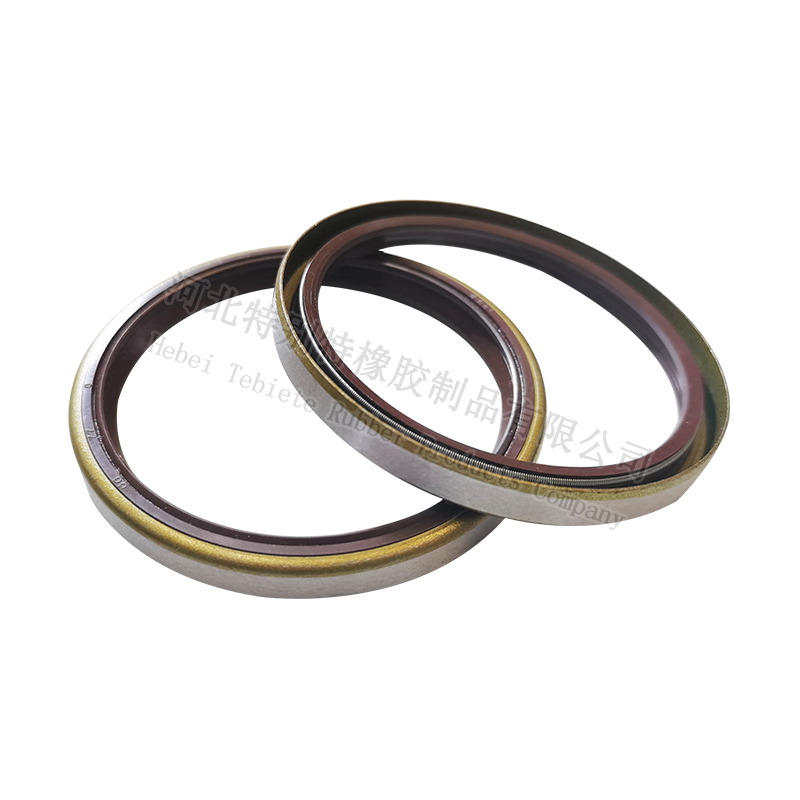

65x77x8 Hot Quality NBR TB Type Oil Seal ,FAW 13T Shift Oil Seal
Oil Seal Stucture:
Product Name | Shaft Oil Seal |
Size | 65x77x8 |
Truck Model | FAW |
Material | NBR or Depends on inquire |
Color | Brown or Depends on inquire |
Temperature Resistant | -40℃——+260℃ |
Quality Certification
| IATF16949:2016 & ISO9001:2008 |
MOQ | 1 pcs can be accept if have stock 50pc can be accept if have mold without stock 500-1000pcs if don't have mold |
Customized | OEM & ODM are welcome |
Package | Inner plastic bag + Outer carton box |
Performance of Raw Material:
| NBR | Excellent resistant to oil, Low temperature resistant,widely used
in industrial area
|
| EPDM | Excellent resistance to weather and ozone, good resistance to heat,
low temperature and chemical
|
| NR | High elasticity, good chemical strength
|
| CR | Generally good resistance to ozone, aging ,and chemical, good
mechanical properties over a wide temperature range
|
| SBR | Shock resistance,performance well in adhesion and sealing
|
| SILICONE | Widest operating temperature range, performance stably in high and
low temperature,widely use in food sealing area
|
| VT/FKM | Excellent resistance to high temperature and a broad range of
chemical, permeability and compression set are excellent
|
| HNBR | Thermal stability and oxidation resistance
|
| IIR | Low permeability rate and good electrical properties
|
Oil seal type:
TC, TB, SC, SB, TB5SY, VC, VB,VK ,TA, SA ,SAY,SCNY2,SCOT,SCOTPLUS
TCV, TCN, TCN-6, TZ TCHD, TCHD-1 ,ISPID, 15Z, 15Z-3,
TC4, TB4, DC, DB,DCY, HSCL,HTC ,HTC9L,HTGL,KC, VR, MG, CNB, SCJY,
SCY, VK
Oil Seal Main Types:
Oil Seal Used In Engine: DR, DL, TG, TGW, TC etc.
Oil Seal Used In Wheel: TC, TB, SB, SC, TA, SA, TG, SG, TGW,
combined type and so on.
Oil Seal Used In Electric tool: TC, TB, SB etc.
Oil Seal Used In Agricultural vehicle: Special type as customers'
reuqirement
Oil Seal Used In Construction Machinery: SIBC, TZDL, TA, TC etc.
Typical Applications
Primarily for applications with no pressure or very low pressure up
to 7psi (0.5bar) spikes*
General purpose seal for oil and grease retention for power
transmission, motors, pumps, gear boxes, fans, machine tools and
others.
Operating Range
Maximum Pressure: 3psi (0.2bar) continuous, 7psi (0.5bar)* max.
pressure spikes depending on shaft speed
Temperature: -58 to 400°F (-50 to 200°C) depending on seal material
Shaft Surface Speed: Up to 7,000 fpm (35m/s)* depending on shaft
diameter and seal material
Materials: NBR (Nitrile), FKM, ®, HNBR, EPDM, low temperature and
low-friction material grades.
Brand Advantage:
---It was awarded the honorary title of “Top Ten Brands of China
Auto Parts Industry” by the Organizing Committee of China Auto
Parts Industry General Appraisal, and became the “Customer of World
Expo Commercial Cards for Expo 2010 Shanghai”. In 2011, it became
the brand of CCTV-7.
Production Advantage:
---We have passed the IATF16949:2016 quality management
certification and have qualified environmental inspection
procedures and equipment;.
---We have the Advanced production equipment and process to provide
you with high quality and low price products and services
Service Advantage:
---We have a team for overseas market. In this team, we will follow
customers needs about the products and make sure customers are
satisfied with products.Also, we will try our best to solve
problems for customers and give them the best solutions.
Technology Advantage:
--- Introducing high-tech production line of automated production
lines and specializing in the development and production of various
rubber products, we also invite rubber experts to research new
technology, new formula of "drive belt" and "oil seal" and other
rubber products to make our products anti-aging, wear-resistant and
advanced level of resistance to high and low temperatures.
Team Advantage:
---In Tebiete, teamwork is critical from production, sales to
services. Small teams in each department will gather strength to
drive the development of the entire company.
FAQ:
Q : When can I get the price?
A : We usually quote within 24 hours after we get your inquiry. If
you are very urgent to get the price, please tell us by E-mail,so
that we will regard your inquiry as the first priority.
Q : How can I get a sample to check your quality?
A :After price confirmation, you can require for samples to check
our quality.
Q : Can you do the design for us?
A :Yes. We have a professional team with rich experience in
packaging box design and manufacturing. We can manufacture the
products as per your requirements.
Q : How long can I expect to get the sample?
A :It will be ready for delivery in 7-10 days. The samples will be
sent to you via express and arrive in 3-5 days.
Q : What about the lead time for mass production?
A :Usually 30-45 days after you confirm the PP sample and we
received your deposit.
