Dong Feng Truck 574158783511 (105*135*14*20) Shaft Oil Seal Input Axle 105X135X14/20mm

Hebei Te Bie Te Rubber Product Co., Ltd.
Contact Now
    Buy cheap Dong Feng Truck 574158783511 (105*135*14*20) Shaft Oil Seal Input Axle 105X135X14/20mm from wholesalers

    Buy cheap Dong Feng Truck 574158783511 (105*135*14*20) Shaft Oil Seal Input Axle 105X135X14/20mm from wholesalers
    • Buy cheap Dong Feng Truck 574158783511 (105*135*14*20) Shaft Oil Seal Input Axle 105X135X14/20mm from wholesalers
    • Buy cheap Dong Feng Truck 574158783511 (105*135*14*20) Shaft Oil Seal Input Axle 105X135X14/20mm from wholesalers
    • Buy cheap Dong Feng Truck 574158783511 (105*135*14*20) Shaft Oil Seal Input Axle 105X135X14/20mm from wholesalers

    Dong Feng Truck 574158783511 (105*135*14*20) Shaft Oil Seal Input Axle 105X135X14/20mm

    Ask Lasest Price
    Brand Name : TBT or custom
    Model Number : 574158783511
    Certification : IATF 16949: 2016 , ISO 9001:2008
    Price : US Dollars $1.1-$3/pcs
    Payment Terms : T/T
    Supply Ability : 10000 pcs/ day
    Delivery Time : 10-30 days
    • Product Details
    • Company Profile

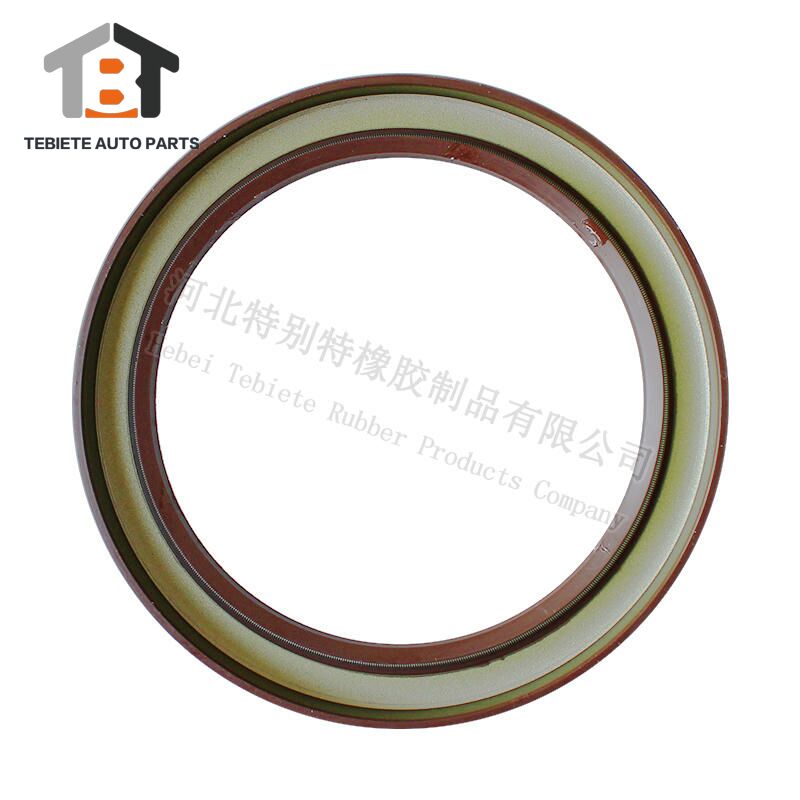

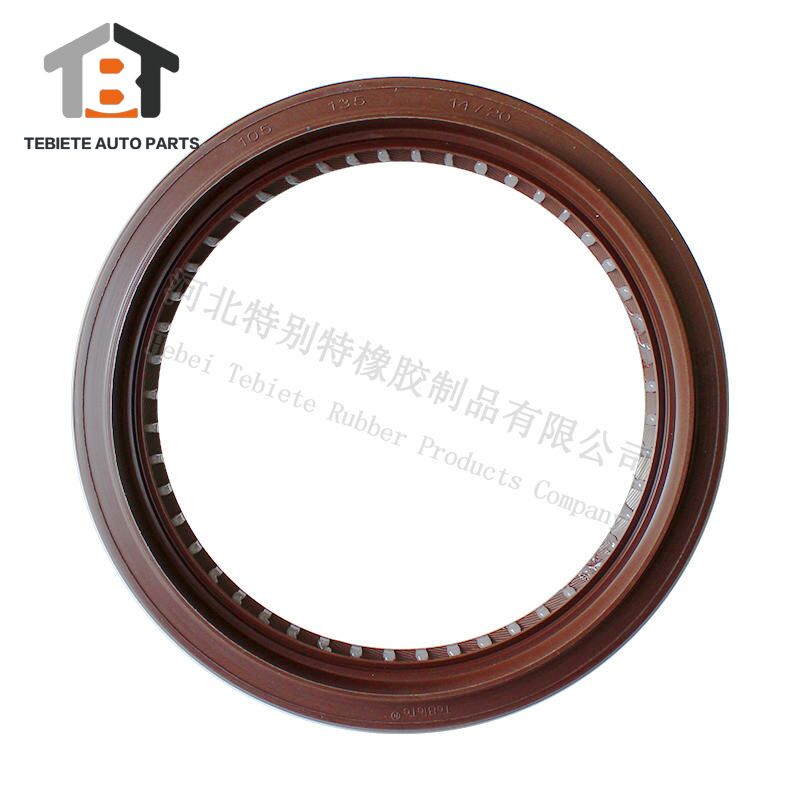

    Dong Feng Truck 574158783511 (105*135*14*20) Shaft Oil Seal Input Axle 105X135X14/20mm

    Product Feature:


    Product Nameshaft oil seal
    Size105*135*14*20mm
    OEM574158783511
    MaterialsNBR, HNBR, EPDM, SILICONE, VITON, FLS, FFPM, PTFE
    Temperature

    NBR(-40~120°C),FFKM(-20~320°C)

    Viton(-20~200°C),Silicone (-70~220°C)

    EPDM(-50~150°C),PU(-40~90°C)

    FeatureResistance to high pressure, oil, weather, abrasion, solvent, high temperature, abrasion resistant, aging resistant, insulation, acid and alkaline resistant
    CertificationISO 9001:2008
    Hardness30-90 shores A
    ColorRed,Black,White, blue, green,Clear,etc
    SizeAny size, Customized/standard and nonstandard
    Sample TimeIf in stock, within 3 days after payment
    Delivery Time

    10-20 days by shipping after final payment

    ShippingBy Ships
    CustomizedOEM & ODM are welcomed
    PackingPlastic bag&carton box or according to your requirements

    the requirements of the oil seal on the assembly shaft:


    1. The surface roughness of the shaft is in accordance with the provisions of GB1801. The shaft surface in contact with the oil seal should be


    ground to a surface roughness Ra0.2 ~ 0.63um and Rmax = 0.8 ~ 2.5um.


    2. The diameter tolerance of the shaft shall not exceed h11 according to GB1801.


    3. The chamfer width is according to GB13871-92.


    4. Surface hardness: The material of the shaft is preferably carbon steel and alloy steel. The recommended hardness is HRC45 or higher. When


    the medium is dirty and has contaminated impurities from the outside or the linear speed of the shaft is ≥12m / s, the surface hardness of the


    shaft It should be HRC50 ~ 60, and the depth of quenching layer should be ≥0.3mm.


    5. The shaft is chamfered at 30 degrees (maximum). There should be no burrs, sharp corners, and spiral processing marks on the chamfer. The


    roughness of the chamfered surface Ra ≦ 3.2um. The heat-treated carbonized layer must be polished and removed.



    Quality Dong Feng Truck 574158783511 (105*135*14*20) Shaft Oil Seal Input Axle 105X135X14/20mm for sale
