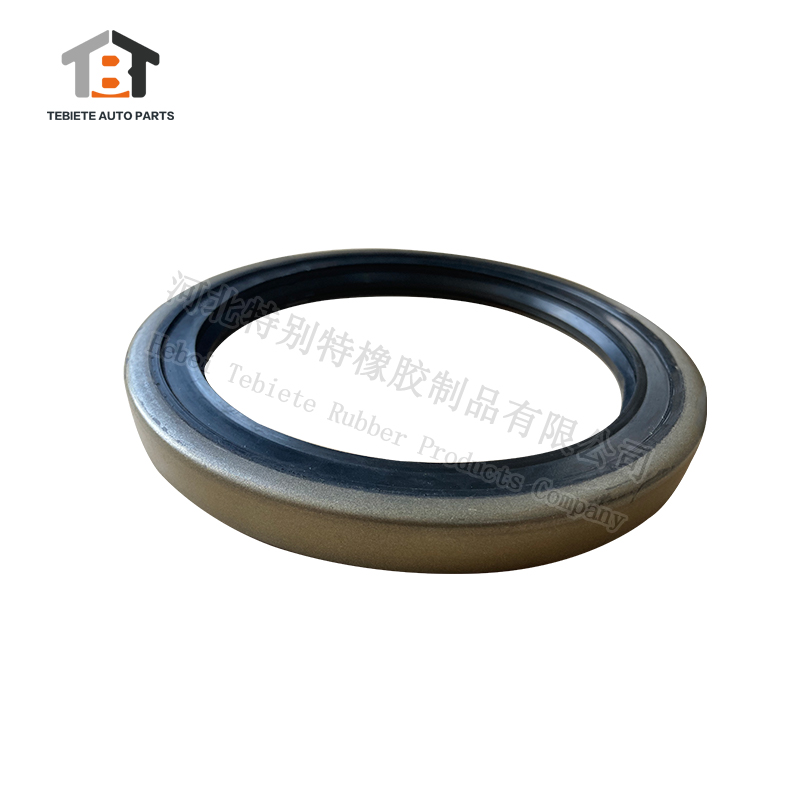

High Temperature Trailer Oil Seal 127*165.1*16mm 127x165.1x16

Hebei Te Bie Te Rubber Product Co., Ltd.
Contact Now
    Buy cheap High Temperature Trailer Oil Seal 127*165.1*16mm 127x165.1x16 from wholesalers

    Buy cheap High Temperature Trailer Oil Seal 127*165.1*16mm 127x165.1x16 from wholesalers
    • Buy cheap High Temperature Trailer Oil Seal 127*165.1*16mm 127x165.1x16 from wholesalers
    • Buy cheap High Temperature Trailer Oil Seal 127*165.1*16mm 127x165.1x16 from wholesalers
    • Buy cheap High Temperature Trailer Oil Seal 127*165.1*16mm 127x165.1x16 from wholesalers
    • Buy cheap High Temperature Trailer Oil Seal 127*165.1*16mm 127x165.1x16 from wholesalers

    High Temperature Trailer Oil Seal 127*165.1*16mm 127x165.1x16

    Ask Lasest Price
    Brand Name : TBT
    Model Number : 127*165.1*16mm
    Price : USD2.3-USD3/pcs
    Payment Terms : L/C, T/T, MoneyGram, Western Union
    Supply Ability : 10000pcs/week
    Delivery Time : 5-30 working days denpend on the quantity
    • Product Details
    • Company Profile

    High Temperature Trailer Oil Seal 127*165.1*16mm 127x165.1x16

    Product Details:

    Product Name:Rotery Oil Seal(127x165.1x16) For Shaft Of Truck 127*165.1*16


    Product Nameoil seal for truck shaft
    Truck Patrsengine oil seal
    Size127*165.1*16mm
    OEM9828-01203 / 90033-11031
    MaterialsFKM
    Temperature

    NBR(-40~120°C),FFKM(-20~320°C)

    Viton(-20~200°C),Silicone (-70~220°C)

    EPDM(-50~150°C),PU(-40~90°C)

    FeatureResistance to high pressure, oil, weather, abrasion, solvent, high temperature, abrasion resistant, aging resistant, insulation, acid and alkaline resistant
    Certification

    IATF16949:2016

    ISO 9001:2008

    SGS Quality Testing

    Hardness70-90 shores A
    ColorRed,Black,White, blue, green,Clear,etc
    Sample Time

    If in stock, within 3 days after payment

    If have mold but no stock ,around 10-20days (Depends on order quantity)

    If need make new mold , aroud 20-40days (Depends on order quantity)

    Delivery Time

    3-10days by shipping after final payment

    ShippingBy Ships
    CustomizedOEM & ODM are welcomed
    PackingPlastic bag&carton box or according to your requirements
    CertificationIATF 16949: 2016

    Material Feature:


    Species

    Oil

    resistance

    Weather

    resistance

    Wear

    resistance

    The lowest

    Temperature

    The highest

    Temperature

    Features
    FKMoptimaloptimaloptimal-40250It has excellent heat resistance, oil resistance and chemical resistance, and is the best balanced rubber for oil seal.
    VMQgoodoptimalgood-60225It has excellent heat resistance, cold resistance and weather resistance.
    ACMoptimaloptimaloptimal-35150The heat resistance is better than nitrile butadiene rubber, it has excellent oil resistance to internal combustion engine, gear oil, torque converter oil, etc.
    AEMgoodoptimaloptimal-40175It has good oil resistance and heat resistance, better than acrylic gum, slightly worse than silica gel, but good weather resistance.
    HNBRoptimalgoodoptimal-40150Heat resistance, oil resistance, better weather resistance than nitrile butadiene rubber.
    NBRoptimalgoodoptimal-40125Mineral oil, good wear resistance, widely used in oil seals.
    EPDMpooroptimalgood-40125Good water resistance, polar solvent resistance, inorganic drug resistance and weather resistance, but poor oil resistance.
    PTFEoptimaloptimaloptimal-65260Oil seal material with the best heat resistance, water resistance, chemical resistance, weather resistance and low friction coefficient.

    the requirements of the oil seal on the assembly shaft:


    1. The surface roughness of the shaft is in accordance with the provisions of GB1801. The shaft surface in contact with the oil seal should be


    ground to a surface roughness Ra0.2 ~ 0.63um and Rmax = 0.8 ~ 2.5um.


    2. The diameter tolerance of the shaft shall not exceed h11 according to GB1801.


    3. The chamfer width is according to GB13871-92.


    4. Surface hardness: The material of the shaft is preferably carbon steel and alloy steel. The recommended hardness is HRC45 or higher. When


    the medium is dirty and has contaminated impurities from the outside or the linear speed of the shaft is ≥12m / s, the surface hardness of the


    shaft It should be HRC50 ~ 60, and the depth of quenching layer should be ≥0.3mm.


    5. The shaft is chamfered at 30 degrees (maximum). There should be no burrs, sharp corners, and spiral processing marks on the chamfer. The


    roughness of the chamfered surface Ra ≦ 3.2um. The heat-treated carbonized layer must be polished and removed.

    FAQ:

    Q1: How long is your delivery time?

    A: 3-5days after payment received(public holiday excluded).


    Q2: How to make payment?


    A: We accept multiple payment method like Bank Transfer, Western Union, Money Gram, Credit Card, Paypal ,L/C and so on.


    Q3:Who will pay importing duties?

    A: Our quotation does not includes importing cost such as duties. So our customer has to pay these fees according to importing policy of their

    country. If our customer has special requirement for the declared value, you can tell us.

    Q4:How about your product quality control?

    A:We produce strictly according to the standard production process : qualified material--vulcanization--trimming-second vulcanization--quality

    inspection.

    Q5: What is your advantages?

    A:Our products offers excellent quality, reasonable price, good after-sales service & quality assurance.
