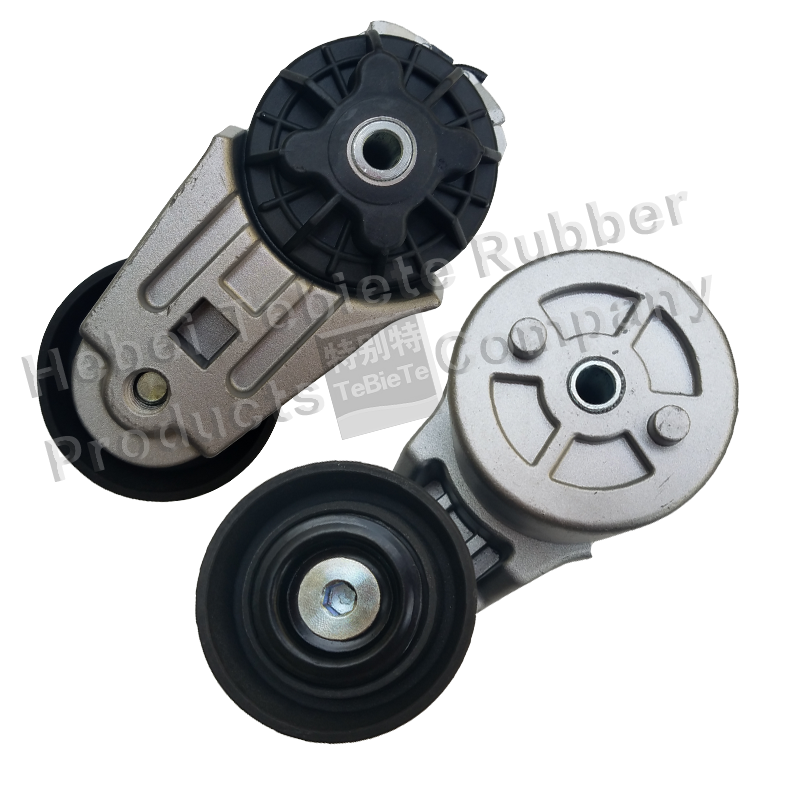

Product Name:Belt Tensioner 612700060033 for MAN truck/Ddelong truck / Wechai
P13 engine
Product Details:
| Name | 612700060033 belt tensioner
|
| size | 74*60 cm standard
|
| MOQ | 12-16 PCS (1 CARTON)
|
| Material | metal
|
| Truck model | MAN , SHanxi Delong
|
| Engine model | Wechai WP13
|
Tensioning wheel working principle:
The tensioning wheel releases the torque of the pre-tightened plane
vortex spring or cylinder torsional spring in the process of
working to achieve the purpose of automatically tensioning the
accessory belt.
Specification for installation of automatic tensioning wheel:
1, scope,
This specification is applicable to the operation of the automatic
tensioning wheel Assembly during installation.
2. Installation steps of abnormal tensioning wheel:
(1)Install and fix the tensioning wheel with M10 countersunk bolt;
(2)The recommended tightening torque of the bolt is :(50±5)N m;
(3) Use a spanner to pull the tensioning wheel arm to the maximum
corner;
(4) in a reasonable order will be around the belt pulley, and
maintain the correct position;
(5)Slowly loosen the tensioning wheel arm and make it tighten the
belt.Pull out the spanner;
The diagram below:
3. Installation steps of the same direction tensioning wheel:
(1) Install and fix the tensioning wheel with M10 flange face
bolts;
The tightening torque of the bolt is recommended to be 50±5N m;
(3) Use the square hole spanner to pull the tensioning wheel arm to
the maximum corner;
(4) in a reasonable order will be around the belt pulley, and
maintain the correct position;
(5)Slowly loosen the tensioning wheel arm and make it tighten the
belt.Pull out the spanner. OK.
The diagram below:
4,Points to note during installation of tensioning wheel:
(1) The belt wedge must be in the corresponding slot of the belt
pulley;
(2) Check whether the positioning block of the tensioning wheel arm
is close to the free position after tensioning the belt. If it is
at a small Angle close to the free position, please replace the
belt.
(3)When the tensioning wheel is disassembled, follow the steps.
Note: for products with bolts, first pull out the pins in the
correct direction during installation.
Service Process:
- First of all, we have service team for communication. Customer
service consultants or customer service personnel interact with
customers to process complaints, process orders, and provide
information about the organization's products and services.
- Secondly, our customer service consultants will follow up the
production for our customers. We provide pictures and videos for
customers to make sure everything follow the plan directly. After
the production is over, the service staff will examine the product
and contact the customer as soon as possible.
- Finally, customer service consultants will contact customer for
feedback on our products and services after half a year
Production Advantage:
---We have passed the IATF16949:2016 quality management
certification and have qualified environmental inspection
procedures and equipment;.
---We have the Advanced production equipment and process to provide
you with high quality and low price products and services；
