165*195*20 Axle Oil Seal Fit For Hongyan KingKan Truck And 457 Axle

Hebei Te Bie Te Rubber Product Co., Ltd.
Contact Now
    Buy cheap 165*195*20 Axle Oil Seal Fit For Hongyan KingKan Truck And 457 Axle from wholesalers

    Buy cheap 165*195*20 Axle Oil Seal Fit For Hongyan KingKan Truck And 457 Axle from wholesalers
    • Buy cheap 165*195*20 Axle Oil Seal Fit For Hongyan KingKan Truck And 457 Axle from wholesalers
    • Buy cheap 165*195*20 Axle Oil Seal Fit For Hongyan KingKan Truck And 457 Axle from wholesalers
    • Buy cheap 165*195*20 Axle Oil Seal Fit For Hongyan KingKan Truck And 457 Axle from wholesalers

    165*195*20 Axle Oil Seal Fit For Hongyan KingKan Truck And 457 Axle

    Ask Lasest Price
    Brand Name : TE BIE TE/ customized
    Model Number : 165*195*20
    Certification : IATF 16949: 2016 , ISO 9001:2008
    Price : US Dollars $0.1-$ 7.45
    Payment Terms : T/T
    Supply Ability : 100000 sets per day
    Delivery Time : 5-40days(accroding to quantity)
    • Product Details
    • Company Profile

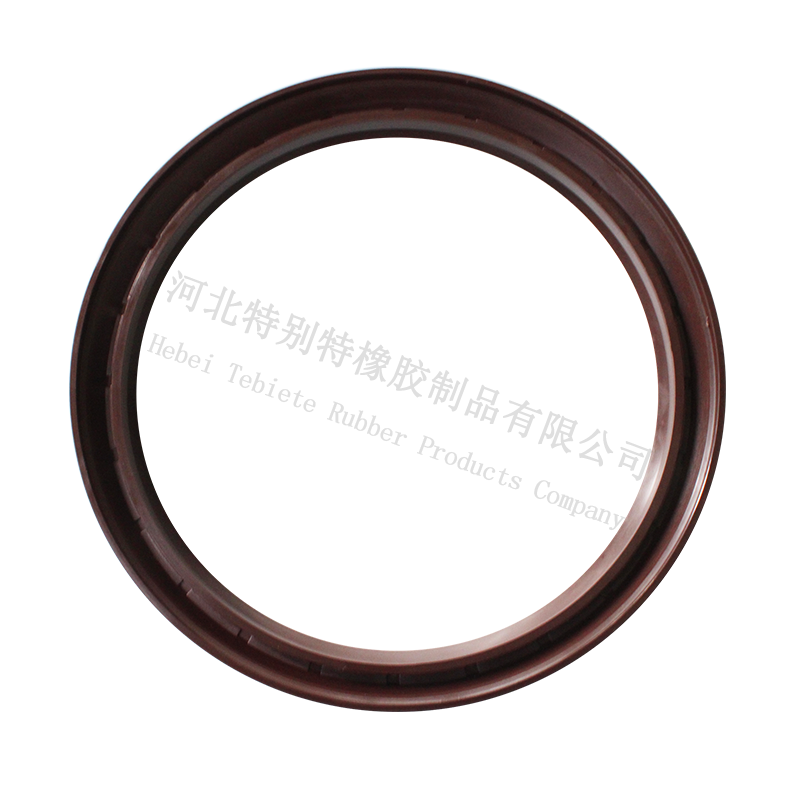

    165*195*20 Axle Oil Seal Fit For Hongyan KingKan Truck And 457 Axle

    Product Name:

    165*195*20 Fit for Hongyan KingKan and 457 Axle Oil Seal


    Material: NBR


    Introduction:


    Product name:165*195*20
    Color:Brown or As Your Request
    Brand Name:TEBIETE or Customize for you
    Feature:Durable
    Place of Origin:Hebei , China
    Type:TC,SC,DC
    Size:Custom Size
    Material:NBR
    Medium:Oil, Water and Dust
    Hardness:Shore A 60-75
    Standard or Nonstandard:Standard

    NBRExcellent resistant to oil, Low temperature resistant,widely used in industrial area
    EPDMExcellent resistance to weather and ozone, good resistance to heat, low temperature and chemical
    NRHigh elasticity, good chemical strength
    CRGenerally good resistance to ozone, aging ,and chemical, good mechanical properties over a wide temperature range
    SBRShock resistance,performance well in adhesion and sealing
    SILICONEWidest operating temperature range, performance stably in high and low temperature,widely use in food sealing area
    VT/FKMExcellent resistance to high temperature and a broad range of chemical, permeability and compression set are excellent
    HNBRThermal stability and oxidation resistance
    IIRLow permeability rate and good electrical properties


    Installation Method:


    (1) Recommended oil seal installation tools and methods


    1. The installation of the oil seal can be flush with the front end of the casing aperture, or it can be close to the low section of the casing aperture.


    2. The reference planes for installation and positioning should be machined surfaces, and the unprocessed reference planes cannot be used.


    3. The outer diameter of the oil seal should be coated with a layer of lubricant.


    4, using hydraulic or pneumatic uniform pressure compression oil seal.


    Note: The matching surface of the oil package is flush with the reference surface of the housing to ensure the verticality of the shaft and the center of the shaft after the shaft is installed, so that the oil seal lip becomes a line contact belt on the shaft surface to achieve a good sealing effect.


    (2) Installation without oil seal


    1.Apply a layer of suitable lubricant when the outer diameter of the oil seal is assembled


    2. Tap the oil seal firmly and evenly.


    3. Check that the oil package is flush with the reference surface of the casing after it is inserted.


    Check that the oil seal spring must not come off.


    Quality 165*195*20 Axle Oil Seal Fit For Hongyan KingKan Truck And 457 Axle for sale
